Two-Color Thermal Printing Explained: How Thermal Printers Print in Red and Black

Most people assume that thermal printers can only print in black. That assumption is understandable—after all, standard receipts and labels are almost always monochrome.

However, in many real-world applications, thermal printers are capable of producing two colors, typically black and red. The interesting part is not just that this is possible, but how it is achieved without using ink or ribbons.

Why Most Thermal Printing Appears Black Only

To understand two-color printing, it helps to start with the basics.

Traditional direct thermal printing relies on heat-sensitive paper. When the printhead applies heat, a chemical reaction occurs in the coating, turning the material black. Because this reaction is triggered at a single temperature threshold, the output appears purely monochrome.

This is why most thermal printing systems are designed around a simple assumption:
one temperature → one color.

Two-color printing breaks this assumption.

How Two-Color Thermal Printing Actually Works

Two-color thermal printing does not involve adding ink or switching cartridges. Instead, it relies on specially engineered thermal paper.

This type of paper contains multiple heat-sensitive layers, each designed to react at a different temperature range. When the printhead applies a lower level of heat, one layer activates (usually producing black). When a higher temperature is applied, a second layer reacts, generating another color—commonly red.

In other words, the same printhead is used, but the energy applied to each dot determines the color outcome.

Key insight:

Two-color thermal printing is not achieved by adding color — but by controlling heat at different temperature thresholds.

The Role of Energy and Temperature Control

This is where the printer's control system becomes critical.

The printhead itself does not inherently “know” which color to produce. Instead, it delivers heat based on timing and energy parameters. By adjusting how long and how intensely each dot is heated, the system can selectively trigger different layers in the paper.

In practice, this means:

• lower energy pulses produce standard black output

• higher energy pulses activate the secondary color layer

This also introduces a level of complexity. The system must carefully balance energy levels to avoid unintended color mixing or inconsistent output.

A useful way to think about it is this:
the printer controls energy, but the paper determines the final color.

Where Two-Color Thermal Printing Is Used

Because of its unique capabilities, two-color thermal printing is often used in situations where visual emphasis matters.

In practice, this typically includes:

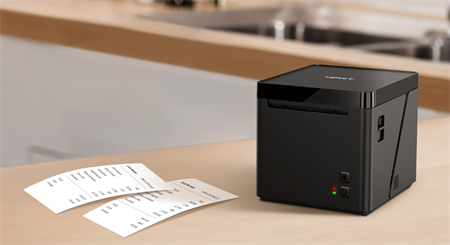

· Retail receipts – red text highlights discounts, promotions, or negative balances, as seen in customized thermal receipt printer models like the HPRT TP807

· Medical environments – critical information or alerts are printed in a second color for immediate visibility

· Lottery tickets and coupons – key numbers or offers are emphasized to stand out

· Financial documents – important values are separated visually from supporting details

What these applications share is not just the need for printing, but the need for clear visual differentiation without adding complexity to the printing process.

Limitations Most People Overlook

Despite its advantages, two-color thermal printing is not a universal solution.

First, the range of available colors is limited. Most systems are restricted to black and red because of the way thermal paper chemistry works. Expanding beyond this is technically challenging and not widely adopted.

Second, printing in two colors often requires more precise energy control, which can slightly affect speed and consistency, especially in high-throughput environments.

Finally, the cost of specialized thermal paper is typically higher than standard media. Over time, this can become a significant factor in large-scale operations.

These constraints explain why many systems still rely on single-color printing unless dual-color output is truly necessary.

Practical Takeaway

Two-color thermal printing expands what is possible with thermal technology, but it does so in a fundamentally different way than traditional color printing.

Rather than adding complexity through inks or toners, it leverages material science and precise energy control to produce multiple colors from the same system.

For businesses, the decision to use two-color printing should come down to a simple question:

Do you need visual emphasis strong enough to justify specialized media and tighter control?

If the answer is yes, two-color thermal printing can be a powerful and efficient solution.
