Thermal Printer Mechanisms for Medical Devices: What Engineers Often Overlook

A thermal printer mechanism used in medical equipment is not “medical-grade” simply because it offers high resolution, long head life or a compact design. Its suitability depends on how it behaves inside the complete device—electrically, mechanically and during failure.

That matters because a printing problem may do more than delay a receipt. It can distort an ECG waveform, truncate a diagnostic report or create a duplicate patient label.

Choosing a Medical Device Printer Mechanism Starts With the Printed Output

The first question is not “Which mechanism has the best specifications?” It is:

What role does the printed output play in the medical workflow?

An ECG trace, a laboratory result and a patient wristband create different risks.

Waveform printing depends on continuous paper movement, stable density and accurate scale. Diagnostic reports must remain complete and clearly linked to the correct test. Wristbands and specimen labels require reliable identification, because duplicate or missing labels may create a greater risk than a visible printer failure.

The same failure can also have different consequences in different devices. If the electronic record is the official result, a missing printout may be an inconvenience. If clinicians rely on the paper output for immediate review, an incomplete or distorted print may affect the intended use of the equipment.

This is why the printer should be assessed within the device risk-management process. IEC 60601 requirements apply to the complete medical electrical equipment or system, while ISO 14971 requires manufacturers to evaluate risks based on the device's intended use and possible failure conditions.

In other words, the mechanism itself does not become compliant in isolation. It must support the finished device's safety and performance requirements.

Thermal Printer Power and EMC Can Affect Medical Equipment Performance

Average power consumption is useful, but peak current is usually the more important integration figure.

A direct thermal mechanism may drive the printhead, stepper motor and cutter at nearly the same time. Dense graphics or long waveform printing can produce short current peaks that are much higher than the average load.

Possible effects include:

• supply-voltage dips

• controller resets

• reduced print density

• noise on shared ground paths

• interference with sensitive analog circuits.

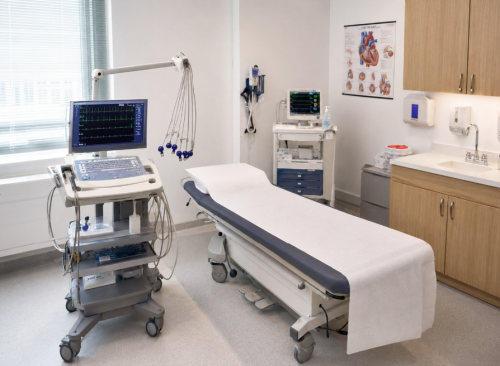

This is especially relevant in ECG machines, patient monitors and diagnostic analyzers, where low-level signals may be measured close to the printer electronics.

A supplier should therefore provide more than rated wattage. Engineers should ask for maximum dot activation, head resistance tolerance, motor start and stall current, cutter current and recommended decoupling.

EMC should also be tested under realistic load. Thermal-head switching, motor commutation and long flexible cables can generate emissions, while external disturbances may cause communication errors or false sensor states.

A printer installed inside the enclosure but left idle does not represent the worst case.

EMC testing should include dense printing, continuous paper movement and cutter operation where applicable.

The key issue is not whether the mechanism carries a vague “medical” claim, but whether the complete device maintains its required performance while the printer is operating.

Print Quality Is About Data Integrity, Not Just DPI

Resolution alone does not determine whether a medical printout is reliable.

For waveform applications, the printhead's dot density describes only one axis. The paper-feed direction depends on motor control, platen diameter, gearing, media thickness and friction. A 300 dpi printhead can still produce a stretched or compressed ECG trace if paper movement drifts.

Validation should therefore measure the actual printed scale over the longest expected job, not only inspect a short sample. Engineers should look for cumulative feed error, missing lines, density changes and slippage after loading or cutting.

Barcode printing presents a similar issue. There is no universal rule that all medical barcodes require 300 dpi or more.

The correct resolution depends on:

• the smallest module width

• symbol size and data density

• print growth

• media quality

• scanner capability

• the required verification grade.

A large linear barcode may perform well at 203 dpi, while a compact DataMatrix symbol or small wristband label may require 300 dpi or higher. The decision should come from the actual symbol and production media, not from a blanket DPI target.

Media also affects feed accuracy, contrast and durability. ECG paper, labels and wristbands differ in coating, thickness, friction and sensing requirements.

One important distinction is often missed:

Printhead life is not the same as image life.

A durable mechanism does not guarantee that thermal output will remain readable for years. Image stability depends mainly on the media and its exposure to heat, humidity, light, plasticizers, alcohol and cleaning chemicals. Any archival claim should be supported by media data and application testing.

Printer Fault Handling Matters More Than Headline Print Speed

The most serious printing error may not be a complete stop. It may be an output that looks valid but is incomplete.

Examples include a report missing its final lines, an unnoticed gap in a waveform, a duplicate label created after a retry, or a print task being marked complete before the paper has actually exited.

These problems occur at the boundary between the mechanism, host controller and device software.

The host should distinguish paper-out, cover-open, overtemperature, motor stall and cutter failure. A generic “printer error” signal makes safe recovery harder.

It also needs a reliable way to determine whether a physical print task actually finished. Sending all data is not proof that the report or label was produced correctly.

Retry behavior should be defined in advance. Automatic retry may be acceptable for a general report, but risky for a patient wristband or specimen label. Reprints may need a copy mark, operator confirmation or a new transaction record.

Power-loss recovery is also a system function, not a feature of the mechanism alone. It may depend on task IDs, non-volatile memory, paper-position sensing and event logs.

The central question is simple:

Can the system fail visibly, or can it silently produce a misleading output?

Validate the Printer Mechanism Under Real Conditions

Supplier life figures should always be read together with their test conditions.

A stated printhead life may assume one approved paper, controlled temperature, fixed density and regular cleaning. Actual medical equipment may run inside a warm enclosure, print long waveforms or use adhesive media that contaminates the paper path.

A realistic test plan should reflect the longest expected print job, typical print coverage, internal enclosure temperature, daily workload, intended media, and maintenance conditions.

The printhead may not be the first component to wear out. Platen rollers, gears, sensors, motors and cutters can determine the practical service life.

Usability matters too. Users may change paper while wearing gloves or working under time pressure. The design should reduce the chance of reversed media, incorrect roll width, an incompletely closed cover or unsafe access during jam removal.

Paper compartments and exit paths should also limit the entry of cleaning fluid and make paper dust easy to remove.

Finally, medical equipment often remains in service longer than ordinary commercial printers. Supplier change control, end-of-life notice, firmware stability, material consistency and continued media availability should be evaluated before design approval.

Medical Thermal Printer Integration Checklist

Before approving a mechanism, confirm:

1. What decision or workflow depends on the printed output?

2. What happens if the print appears normal but is incomplete?

3. What is the combined peak current of the head, motor and cutter?

4. Has EMC been tested while the printer is under maximum load?

5. Can the host identify specific fault conditions?

6. How is physical task completion confirmed?

7. Could retries create duplicate reports or labels?

8. Has feed accuracy been measured over long print jobs?

9. Has barcode quality been verified on production media?

10. Do the stated life figures match the actual duty cycle?

11. Can users load media and clear jams safely?

12. Which supplier changes would require revalidation?

Selecting a thermal printer mechanism for medical equipment is not mainly about choosing the highest DPI or fastest print speed. The better approach is to evaluate the complete printing channel—from host data and power delivery to paper movement, fault recovery and final interpretation.

That is what turns a standard mechanism into a dependable part of a medical device.
